USB 3.0 to SATA IDE adapter converter cable arameters:

Interface type: Adopting USB 3.0 high-speed interface, compatible with USB 2.0 1.1 downwards

Transmission speed: 5Gbps

Can connect storage device interfaces: SATA interface, 44 pin IDE interface, 80 pin IDE cable interface (downward compatible with 40 pin IDE interface)

Power supply type: 100-240V globally applicable 2A power adapter power supply

USB 3.0 to SATA IDE adapter converter cable Supported hard drive types:

SATA -3.0G/s and SATA 2-5.0G/s hard drives

2.5 "44 pin IDE laptop hard drive

3.5 "40 or 80 pin IDE desktop hard drive

5.25 "IDE interface CDROM/DVDROM

USB 3.0 to SATA IDE adapter converter cable parameters:

USB 3.0 high-speed interface 5Gbps

SATA 1.5Gbps

SATA 2 3.0Gbps

ATA/ATAPI PIO mode 0 to 4

ATA/ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s

ATA/ATAPI LBA48 48 bit addressing (supports hard disk addressing capabilities of 2TB to 2000GB or above)

USB 3.0 to SATA IDE adapter converter cable technical specifications:

Name: USB TO SATA/IDE Connection Cable

Power input: AC 90V~264V 47~63Hz

Transmission interface: USB3.0 (backward compatibility with USB2.0 1.1)

Storage media: 2.5-3.5 inch hard drive, standard CD-ROM (DVD-ROM) CD-RW、COMBO

Transmission speed: maximum peak 5Gb/s (Max), supporting high-speed burner

USB 3.0 to SATA IDE adapter converter cable Usage:

Confirm that the device is set to the Master mode

Connect the SATA/IDE cable to the device

Connect the device to the power supply

Under normal computer operation, simply connect the USB port at the end

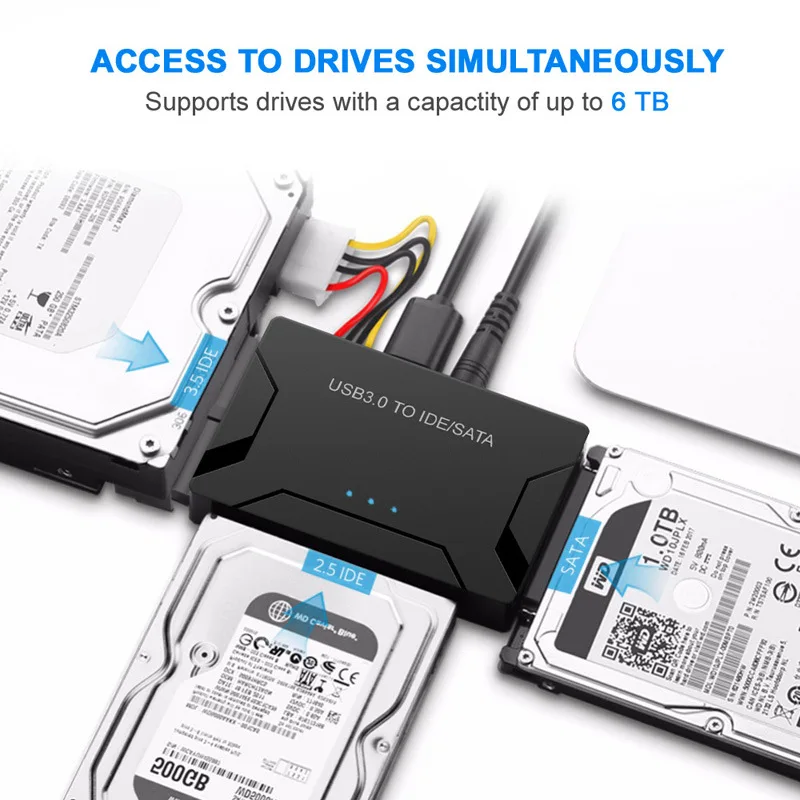

USB 3.0 to SATA IDE adapter converter cable pictures:MZX USB3.0 to SATA IDE Converter USB Adapter Hard Drive Disk HDD Cable 2.5" 3.5" SATA IDE HDD 6TB Laptop PC Computer Accessories USB 3.0 to SATA IDE Adapter Converter Hard Drive Disk HDD Cable for 2.5 3.5 Inch SATA IDE HDD 6TB For Macbook PC Accessories
